Sensoneo Smart Sensors

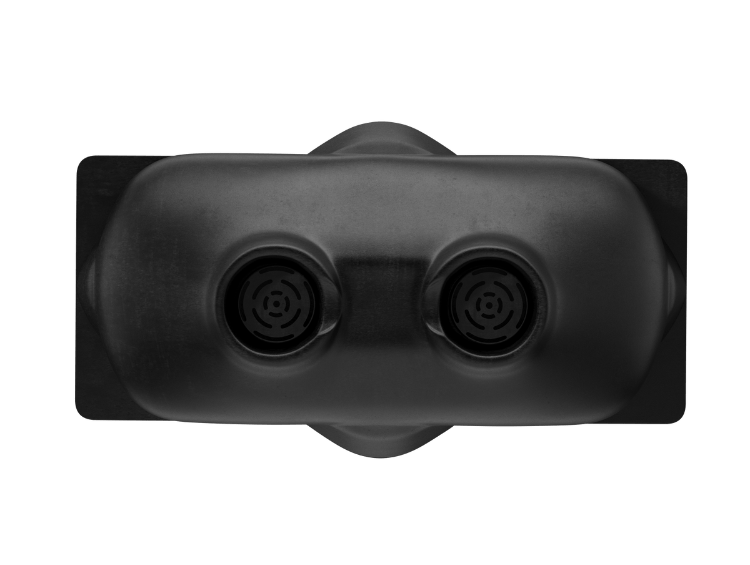

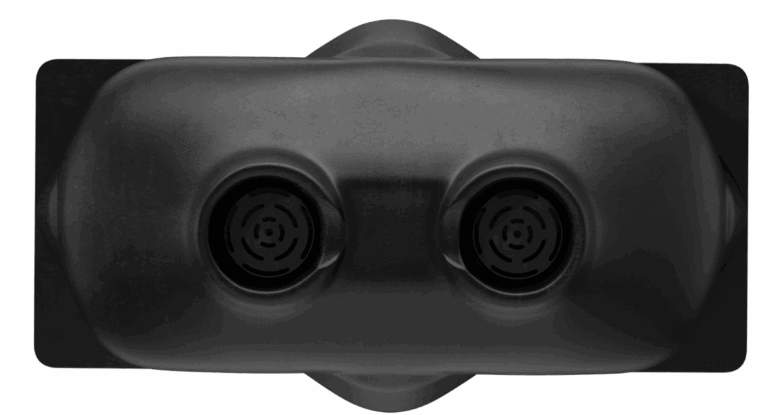

Sensoneo Smart sensors measure fill-levels in bins via ultrasonic beams. Our sensors can monitor any type of waste (mixed waste, paper, plastics, glass, clothing, bio-waste, liquids, electronics, metal….) in bins and containers of various types and sizes. Sensoneo’s solution is a result of in-house R&D.

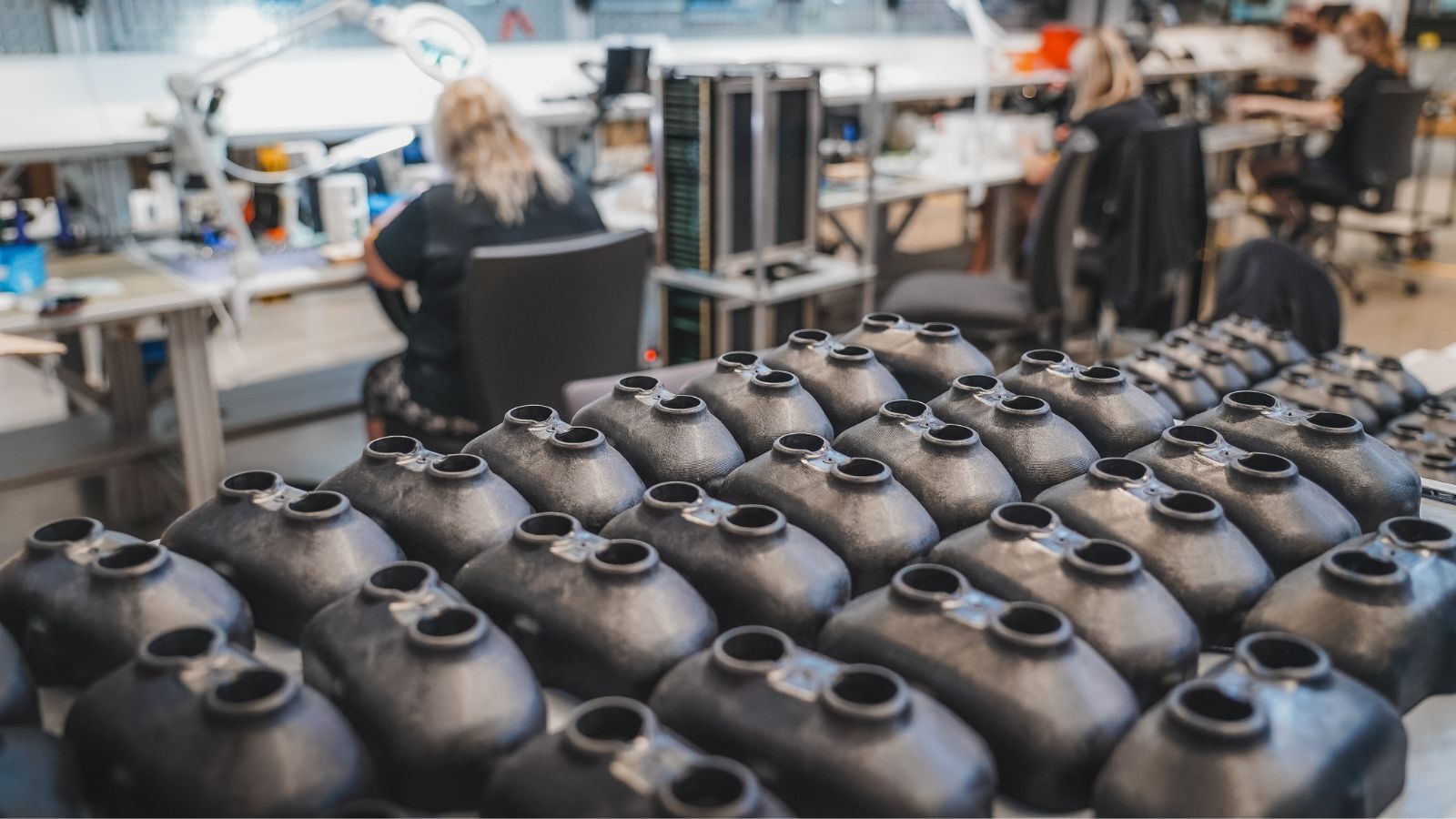

We design, develop and produce the sensors and all waste management software in-house and we are proud of it.
Build quality and resistance

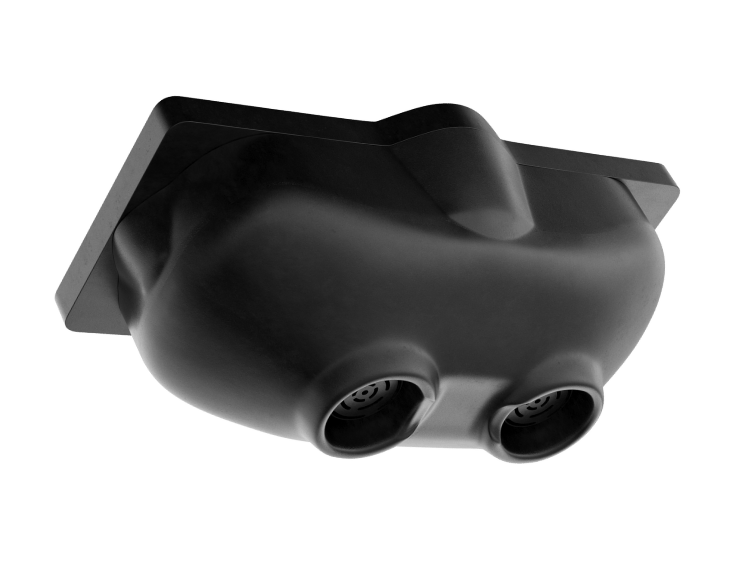

The sensors are ultrasonic, robust, water and shock resistant, fully functional within wide temperature range, and are set to measure from 3 centimetres up to 12 metres.
The sensors can monitor any type of waste and garbage in containers, bins and waste compactors of various types and sizes. The casing is made from recyclable glass fiber reinforced polyamide that provide not only an eco-design, but also helps with recycling.
Technology and connectivity
Sensors measure fill-levels in bins. Ultrasonic technology ensures top measurement accuracy. Smart Sensors can connect to several IOT networks or GPRS to ensure fast data transfer. Payload and network communication is encrypted on two levels preventing misuse of Sensoneo Sensors for DDOS attacks.
More features

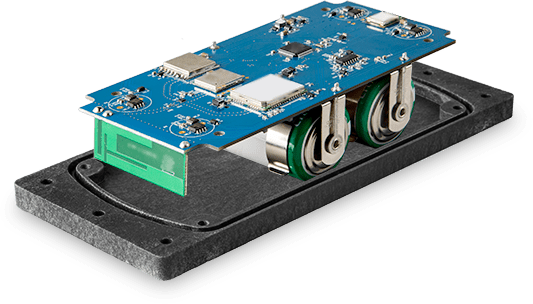

All R&D is conducted in-house. The hardware is of high quality, making use of top quality electronic chips available. The sensors are equipped with replaceable batteries with a lifespan of several years.
Optional features are temperature measurement, fire-alarm, tilt alarm and built-in BLE technology.
Available in various models
Single Sensor 3.0
| Measurement | Single ultrasonic beam |
| Measuring range (cm) | 3 – 255 |
| Connectivity | LoRaWAN / Sigfox / NB-IoT |
| Measurement times | From once a day to every 2 minutes |
| Configuration | Mobile App via BLE or Downlink |
| Emptying recognition | Accelerometer. Advanced tilt recognition algorithm. |
| Replaceable batteries | Yes |
| Temperature measurement | Microcontroller termostate |
| Dimensions in mm (h/w/d) | 50 / 120 / 54 |
| Weight (incl. batteries) | 215 g |
| Casing | IP69 |
| Protection against external mechanical impacts | IK10 rating |
| Material | Recyclable, glass fiber reinforced polyamide |
| Mounting options | Screws / Clench / Rails |

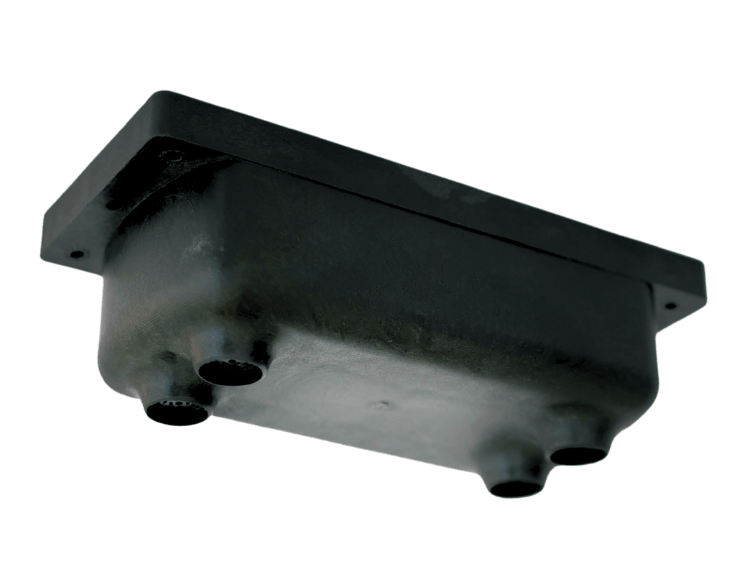

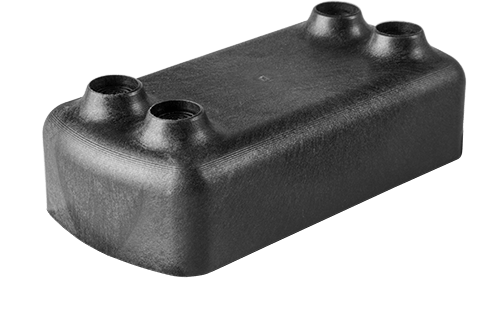

Quatro Sensor
| Measurement | Four ultrasonic beams |
| Measuring range (cm) | 15 – 400 |
| Connectivity | GPRS / NB-IoT / LoRaWAN / Sigfox |
| Measurement times | From once a day to every 2 minutes |
| Configuration | Mobile App via BLE or Downlink |
| Overturn notification | Accelerometer |
| GPS functionality | Yes, powered by GNSS |
| Replaceable batteries | Yes |
| Temperature measurement | Microcontroller termostate |
| Dimensions in mm (h/w/d) | 63 / 200 / 87 |
| Weight (incl. batteries) | 760 g |
| Casing | IP67 |
| Material | Recyclable, glass fiber reinforced polyamide |
| Mounting options | Screws / Clench / Rails |

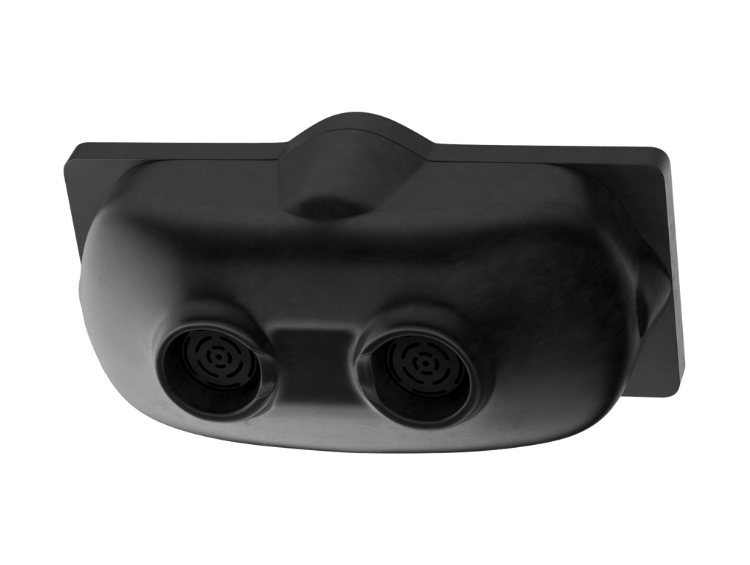

Single Sensor 5.0
| Measurement | Single ultrasonic beam |
| Measuring range standard (cm) | 3 - 255 |
| Measuring range long-range (cm) | 3 - 1200 |
| Connectivity | LoRaWAN / Sigfox / NB-IoT / CAT-M1 |
| Measurement times | From once a day to every 1 minute with ability to set a specific time |
| Configuration | Mobile App via BLE or Downlink |
| FOTA (Firmware Over The Air) | Yes |
| Emptying recognition | Accelerometer. Advanced tilt recognition algorithm. |
| GPS functionality | Yes, powered by GNSS |
| Supporting connection to external GPS | Yes |
| Supporting connection to external antenna for NB-IoT and CAT-M1 network | Yes |
| RORO (roll-on/roll-off) | Yes |
| Replaceable batteries | Yes |
| Temperature measurement | Microcontroller termostate |
| Dimensions in mm (h/w/d) | 50 / 120 / 54 |
| Weight (incl. batteries) | 215 g |
| Casing | IP69 |
| Protection against external mechanical impacts | IK10 rating |
| Material | Recyclable, glass fiber reinforced polyamide |
| Mounting options | Screws / Clench / Rails |

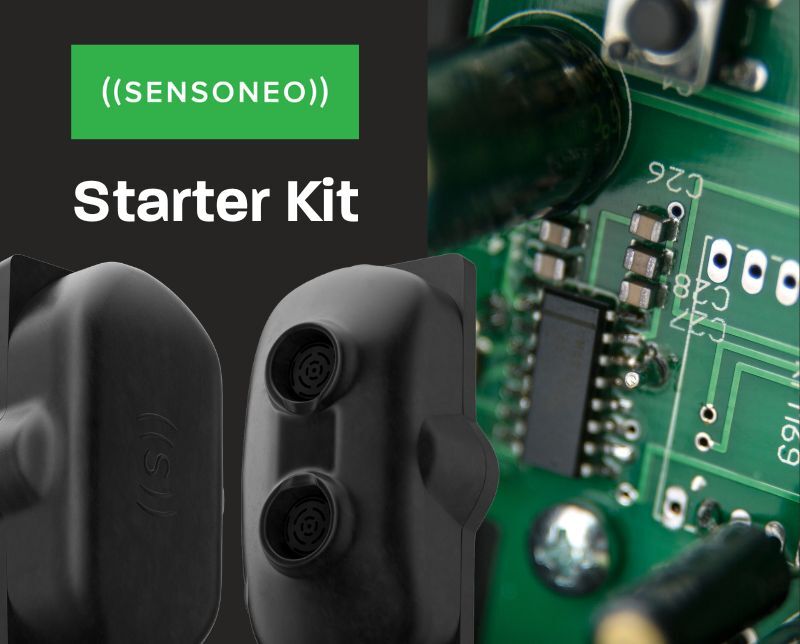

Order Starter kit now and get a first-hand experience of Sensoneo solution
With Sensoneo starter kit you can have a mini-pilot project up and running within few days.

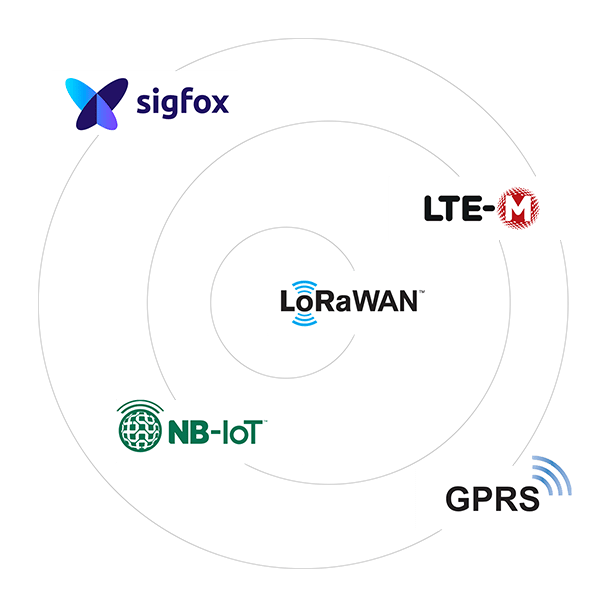

Available networks

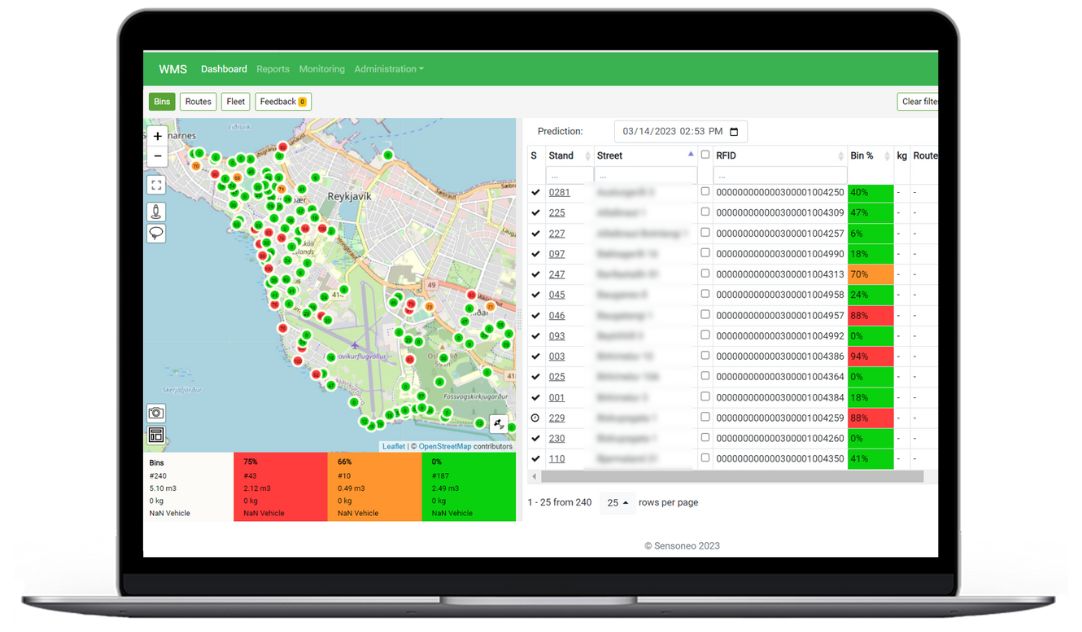

We do not limit customers to a certain network. Our customers have sensors connected to several networks – it all depends on the connectivity available in the given location. Smart Sensors from Sensoneo can be connected to a variety of IoT networks – Sigfox, LoRaWAN, NB-IoT and the Cat-M1 wireless network. If an IoT network is not the right fit for you, GPRS is the safe option. Data is sent in real time to our Smart waste Management System, one of the best waste management software on the market.
Payload and network communication is encrypted on two levels preventing misuse of Sensoneo Sensors for DDOS attacks.
Service verification - detection of pickup
Sensoneo Smart Sensors can provide a service verification for your pickup. The sensor has a built-in accelerometer that recognizes movement, both horizontal and vertical. Upon careful configuration for your bin design, vehicle pickup system and emptying movement, Smart Sensor can detect a pickup and send the notification to the dashboard.
