Radar
sensor
Sensoneo Radar Sensor is an advanced solution for monitoring liquid fill-levels in challenging environments, such as oil and underground water, including corrosive substances like kerosene.
Prevention
of used cooking oil theft
Ideal
for hazardous waste
Fully
enclosed IP69 casing
Liquid Waste Fill-Level Monitoring in Fluid Tanks

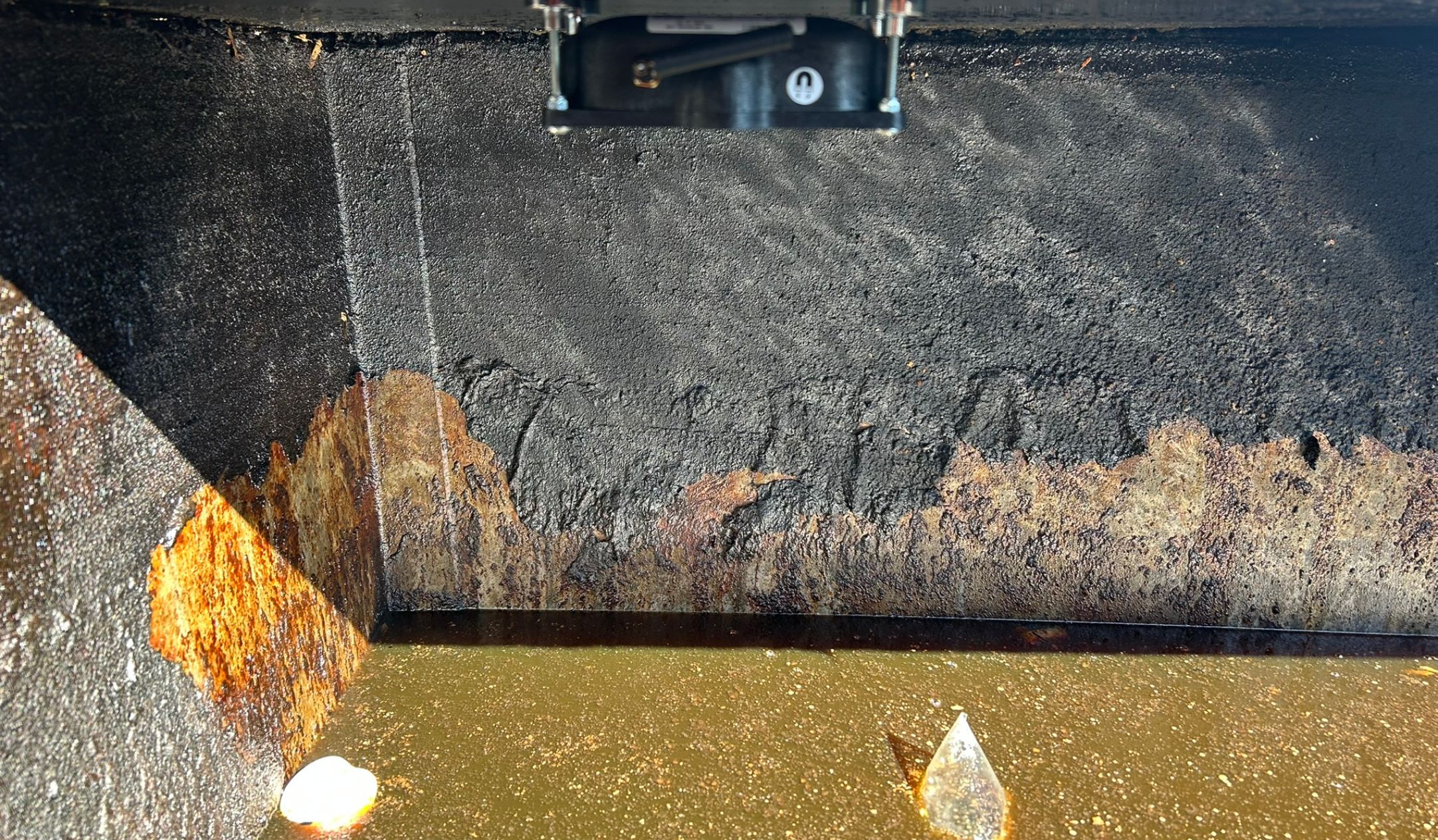

The radar technology enables non-invasive measurements through non-metallic materials like plastic
This allows to measure fill-levels even through walls, screens, or barriers. In other words, the radar sensor does not have to be mounted inside the plastic bin, but can be installed outside. This makes it extraordinarily beneficial, for example, with plastic oil tanks.
The radar sensor by Sensoneo features an important functionality called “Antitheft,” which was developed to quickly detect any non-standard decrease in the level of measured commodities, such as liquids. The sensor can identify if the pre-set emptying speed has been exceeded. Based on this, it triggers an event in the WMS (Waste Management System) that sends an immediate notification to the customer’s email, informing them of the need to check the monitored location.
Key benefits
- Used cooking oil collectors can protect their valuable resources with instant theft alerts
- Homeowners can prevent heating oil shortages
- Industrial facilities can monitor hazardous waste levels safely and remotely
Applications

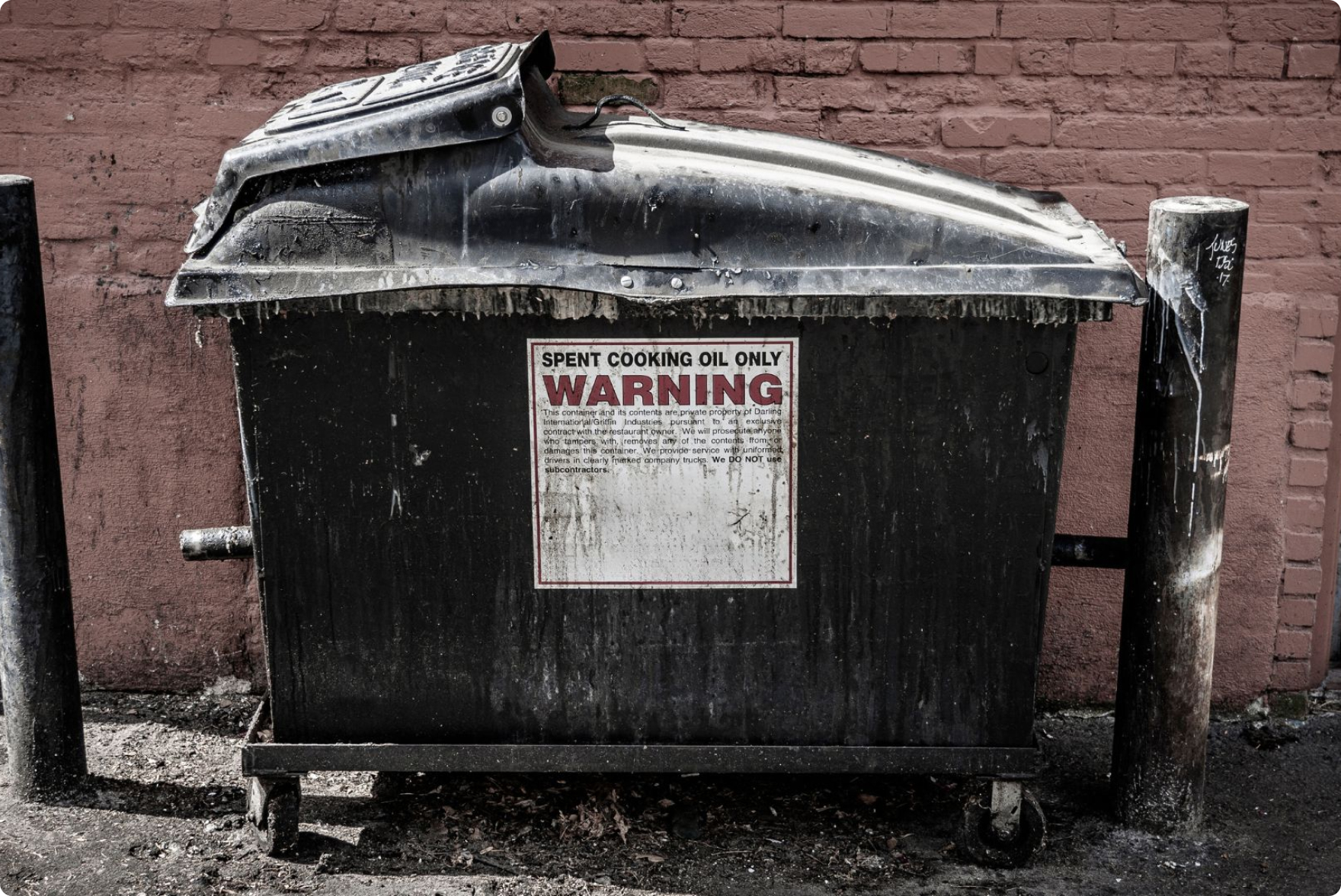

- Used cooking oil bins and dumpsters

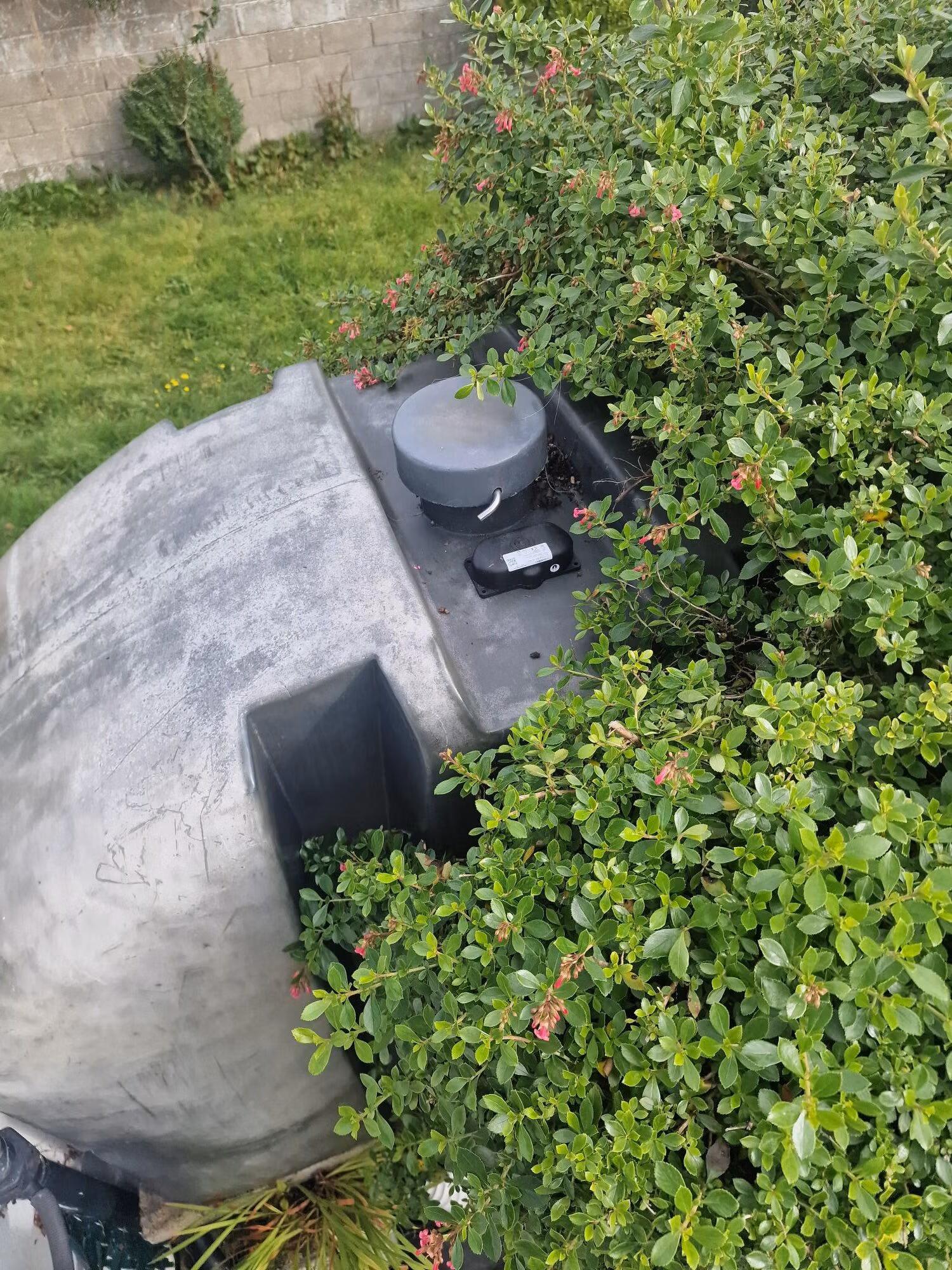

- Kerosene levels in plastic tanks
- Hazardous waste
Functionalities and tech data

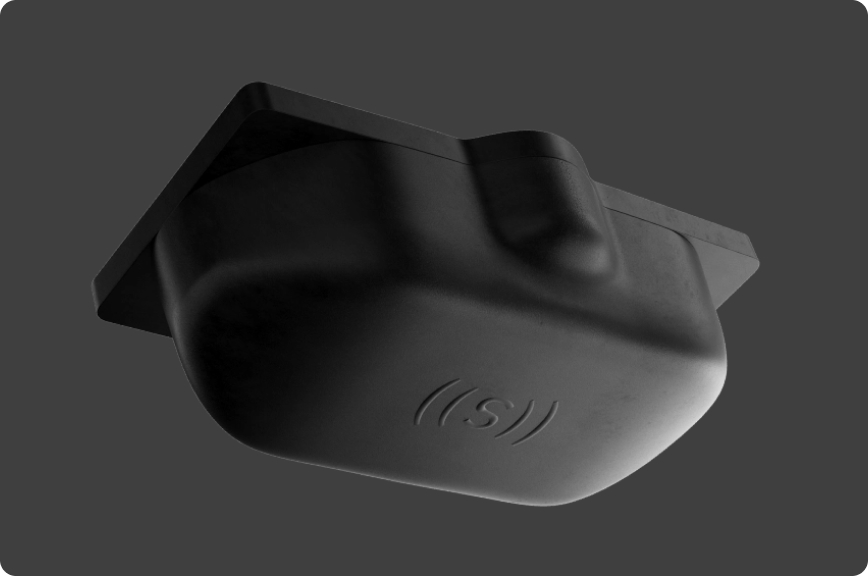

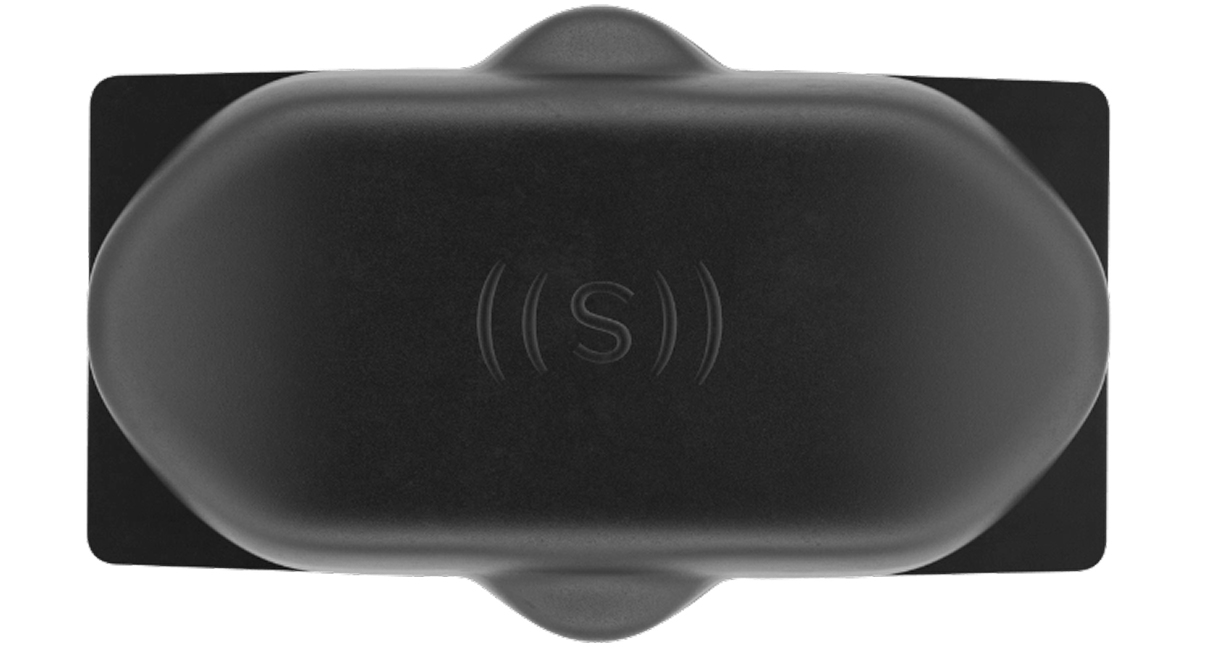

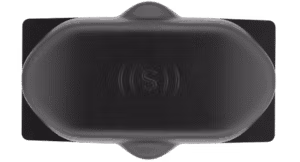

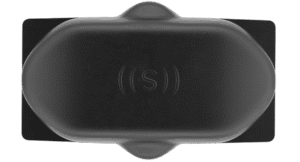

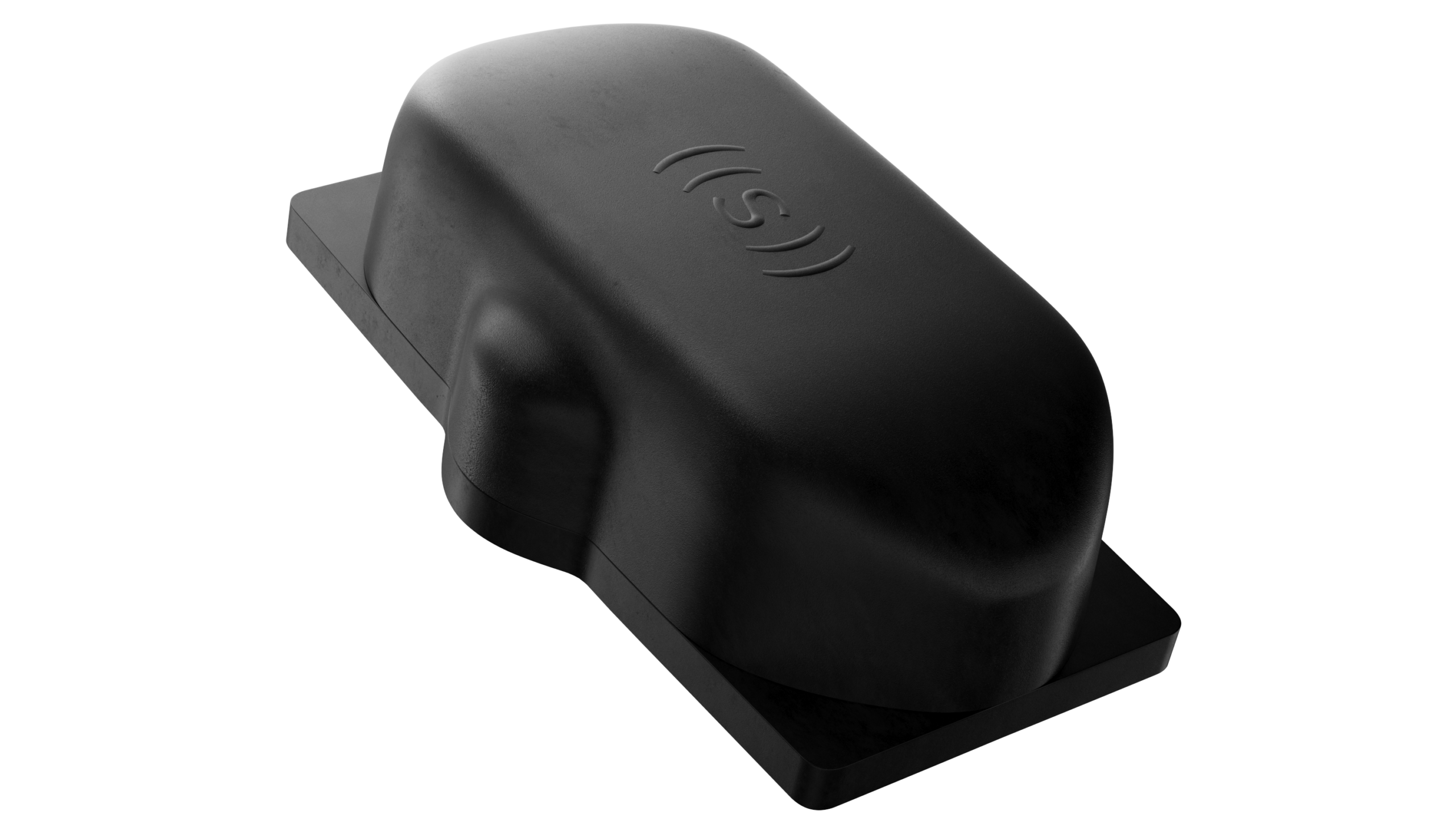

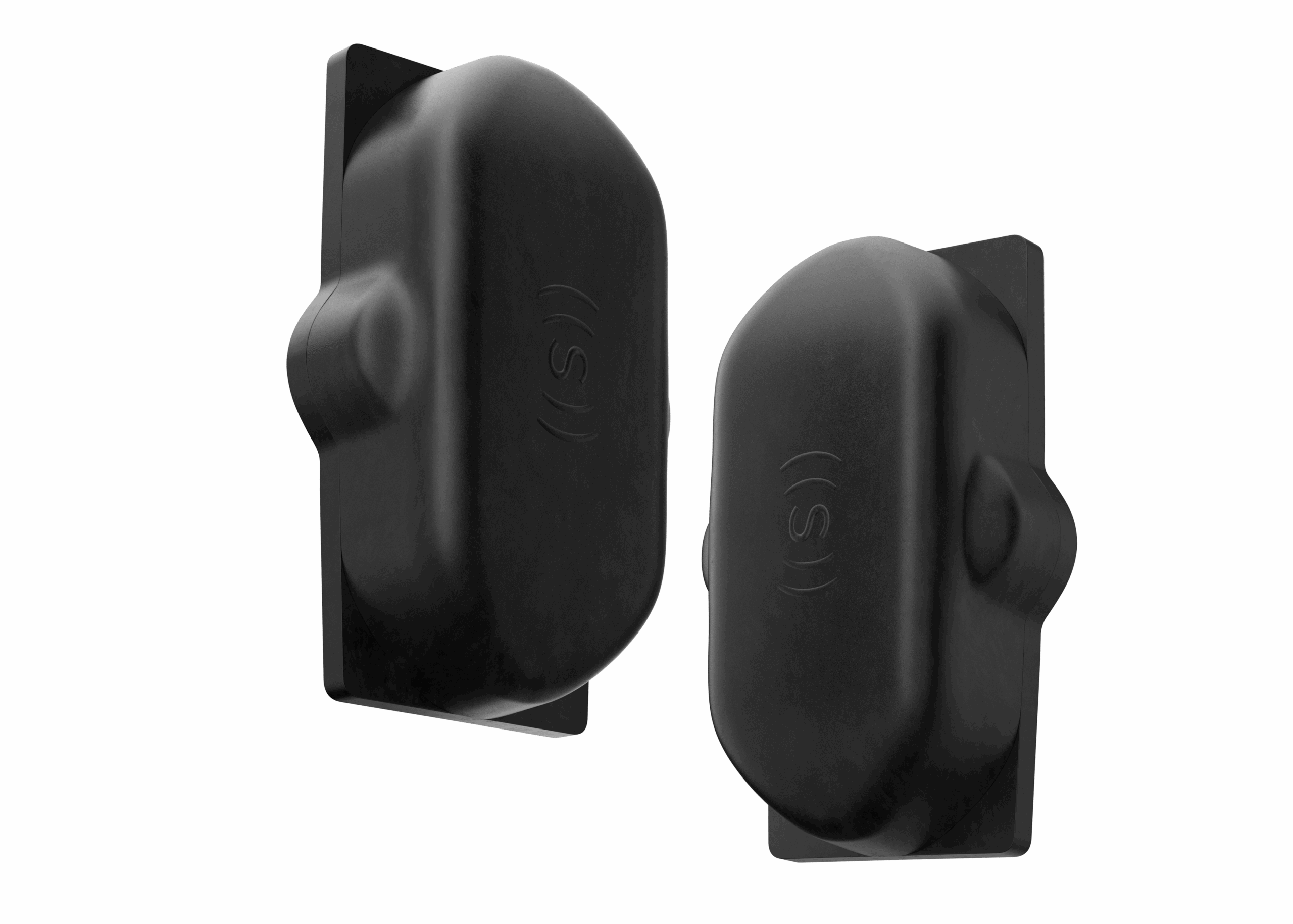

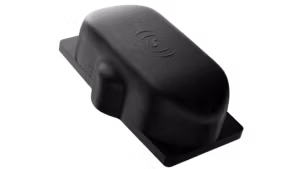

Sensoneo Radar Sensor
Advanced device using radar beam for fill-level monitoring in the most challenging environments
- Measurements through non-metal materials: Conduct non-invasive measurements through materials like plastic, making it ideal for hazardous waste or kerosene oil level monitoring in plastic tanks.
- Firmware Over-the-Air (FOTA): Seamlessly update firmware for enhanced performance and connectivity via NB-IoT or CAT-M1.
- Completely closable and waterproof IP69 casing.
| Measurement | Radar beam |
| Measuring range (cm) | 15 – 320 |
| Connectivity | CAT-M1 / NB-IoT |
| Measurement times | From once a day to every 2 minutes |
| Configuration | Mobile App via BLE or Downlink |
| Replaceable batteries | Yes |
| Temperature measurement | Microcontroller termostate |
| Dimensions in mm (h/w/d) | 50 / 120 / 54 |
| Weight (incl. batteries) | 215 g |
| Casing | IP69 |
| Material | Recyclable, glass fiber reinforced polyamide |
| Mounting options | Screws / Clench / Rails |
| Firmware over the air | Yes |
Antitheft Functionality
Ability to identify if the pre-set emptying speed has been exceeded
IP69 casing
Completely closable and waterproof
FOTA (Firmware Over-the-Air)
Seamlessly update firmware for enhanced performance
Easy configuration
The Radar sensor is easily configurable via the Configurator App. Adjust measurement frequency, length, and other settings to suit your specific needs.
Efficient waste management
with Sensoneo

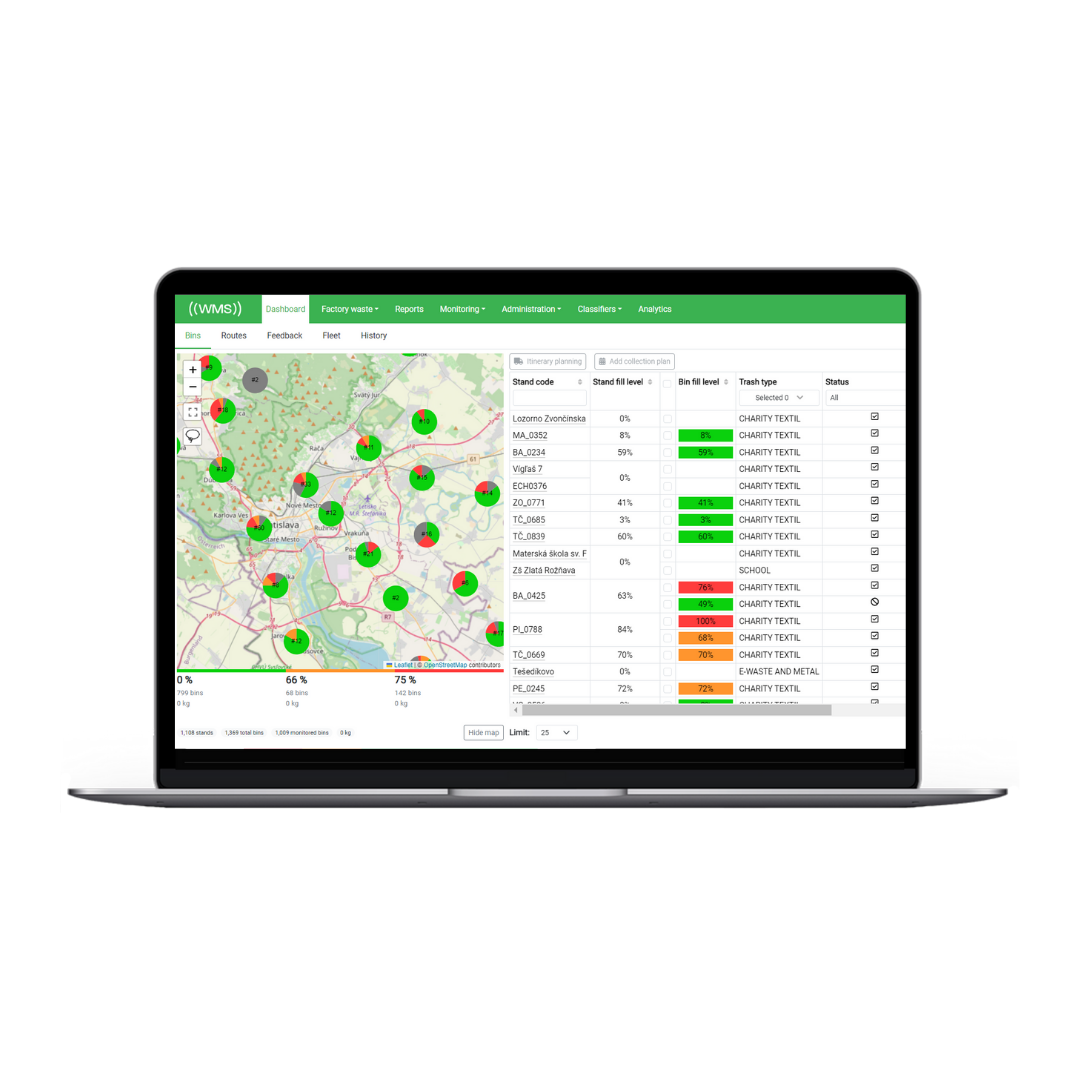

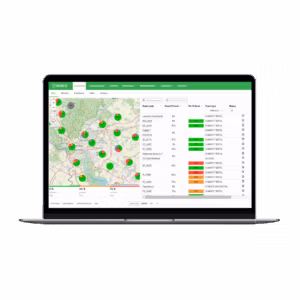

Configure and manage sensors and data swiftly through our software platform Smart Waste Management System. Harness the power of our intuitive dashboard, featuring maps, tables, graphs, comprehensive data analytics, and automated pickup route planning. With real-time data insights, optimize bin locations, capacities and pickup frequency. Streamline waste management operations effortlessly.
Available networks
We do not limit customers to a certain network. Our customers have sensors connected to several networks – it all depends on the connectivity available in the given location. Radar Sensor from Sensoneo can be connected to two IoT networks – NB-IoT and the Cat-M1 wireless network. Data is sent in real time to our Smart Waste Management System, one of the best waste management software on the market.
Payload and network communication is encrypted on two levels preventing misuse of Sensoneo Sensors for DDOS attacks.
