Real-time data on bin fill-level
The company is a global provider of integrated waste management services with 30+ years of experience. Their extensive service portfolio helps address a broad range of environmental
needs. They have become one of the largest service providers of its kind all across the EMEA region.

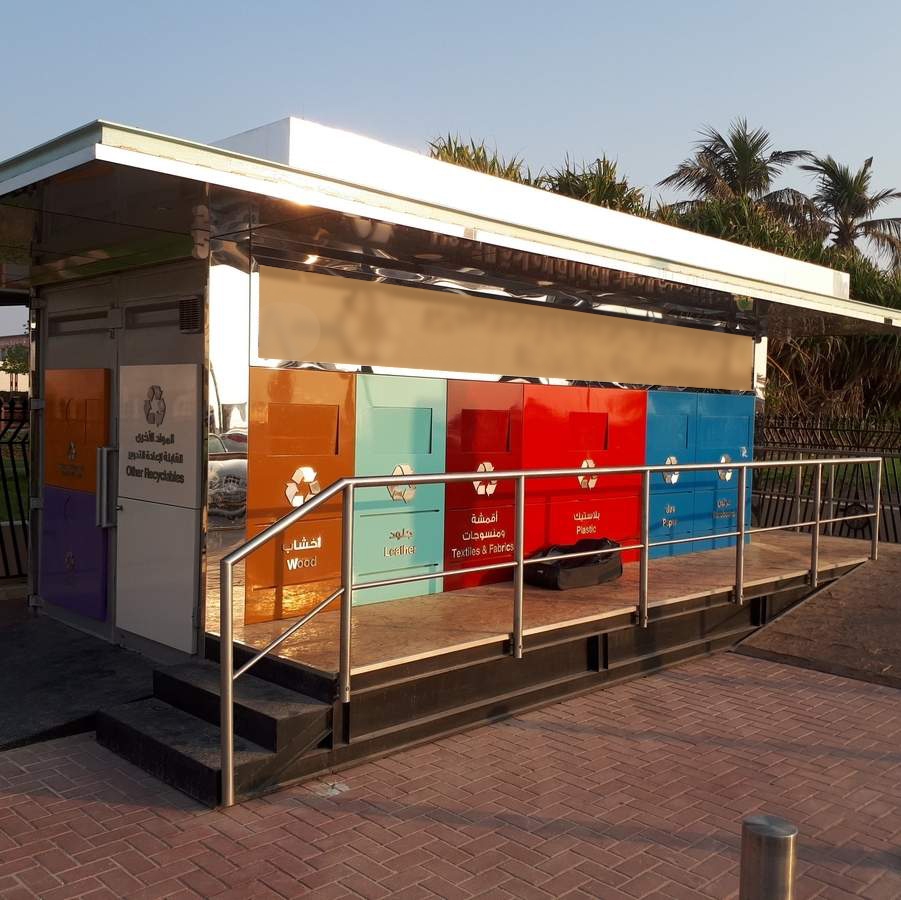

The company is servicing 4 000+ km2 area. They have many recycling centres distributed across the city. Recycling centre collects 17 commodities to 17 dedicated bins. The centres are an example of excellence – both in terms of design and quality.
The company started to look for a smart waste solution back in the summer of 2017 with the intention to monitor fill level in bins and provide data to plan waste collection more efficiently.
Real-time data on bin fill-level
Data to oranize collection routes
Data to evaluate the efficiency
In February 2018, 169 sensors were installed in the Recycling Centres. Sensors monitor 12 out of 17 commodities in each Recycling centre.
As the containers at the Recycling centres are close together, we decided to implement Mesh topology – 1 master device and 12 slaves. The master device is Double sensor. There is one Master per Center. Than each bin is monitored with a Slave – Single sensor. Single sensor measures up to 170 cm distance and therefore it is an ideal fit for smaller bins (150cm depth).
Sensors can work in Master-Slave mode. This topology saves costs on data transmission. It is a good fit for stands with several bins. One sensor is a Master, while other sensors installed in the same location are in Slave mode.
The master sensor receives the fill-level measurements from Slaves via Bluetooth or RF. Master sensors transfer data for the entire mesh via an available network. It is a self-monitoring infrastructure with well-optimized battery usage and data network.
Smart sensors measurement intervals are set to fit the fill cycle of the bins. The bins in recycling centres have various capacity from 0,24 m3 to 1,10 m3. Most of them reach capacity more than once a week. Smart sensors are set to measure 6x a day.
Smart sensors are connected to the GSM/GPRS. This network is a reliable and stable option for transferring measurement data from Smart sensors to the cloud.
Double sensor as Master sensor is sending data via GSM/GPRS.
Single sensors monitoring bins in Recycling centres

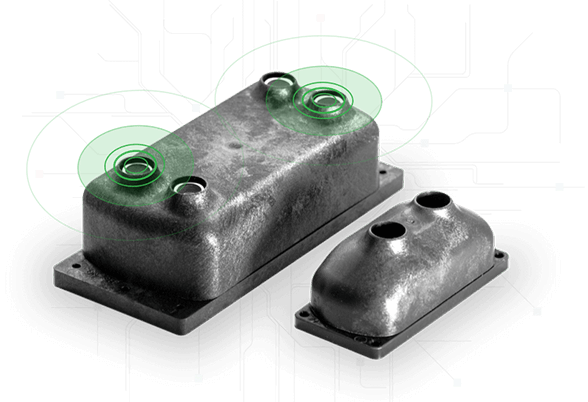

Double sensors as Master sensors in Mesh
Smart Waste Management
See the actual fill-level of all bins monitored by Sensoneo Smart sensors. Here, you can find all the important information related to the specific bins and stands – their address and GPS position, status, code, volume and type of waste they are reserved for. You can also check the prediction of when the bins are expected to reach full capacity.
Data allows you to eliminate overflowing bins and ensure high-quality service for citizens.
Thanks to the deployment of the Sensoneo solution the company maintains control over the quality of service and the Recycling centres stay clean and nice.
Thanks to the filling lifecycle predictions the company plans collection efficiently to eliminate the collection of half-empty bins and to prevent over-flowing bins.
